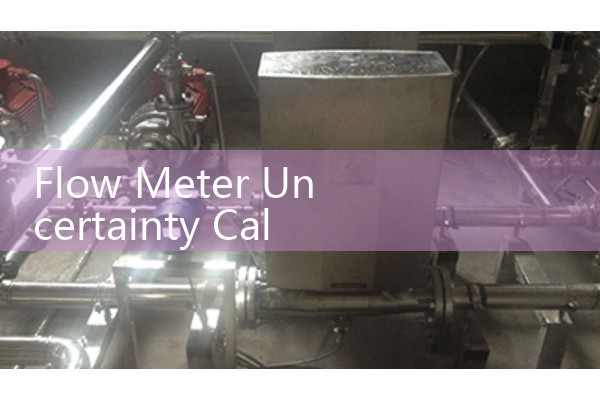

Flow Meter Uncertainty Calculations: Estimating Total Statistical Errors in Custody Transfer

Quick Answer: Custody transfer uncertainty starts with the flow meter accuracy statement, then adds the pressure, temperature, and flow computer errors. For diesel and crude oil transfers, a realistic combined uncertainty target is ±0.25% to ±0.5% of reading. You need a root sum square calculation, not a simple average, because independent errors do not add in a straight line.

What Actually Drives Custody Transfer Uncertainty

Custody transfer billing depends on volume or mass at standard conditions. The meter measures actual volume or mass. The flow computer corrects it using live density or pressure and temperature data. Any drift in those signals becomes a billing error. In practice, field errors are larger than the laboratory accuracy of the meter.

Here is the thing. A flow meter with ±0.2% accuracy in a calibration lab can produce ±0.45% or worse on a truck loading skid in Lagos or Jakarta. The difference comes from installation effects, pulsation, temperature compensation, and a flow computer that has no traceable calibration.

How to Estimate Total Statistical Error

Use the root sum square method for independent devices. Take each uncertainty as a percentage or absolute value. Square each one. Sum the squares. Then take the square root of the total. For example, a flow meter ±0.20%, a pressure transmitter ±0.10%, a temperature input ±0.15% including PT100 probe error, and a flow computer ±0.05% combine to about ±0.27%.

Most engineers skip this part. They add the numbers and get ±0.50%, which overstates the billing risk. But if the errors are correlated, like two sensors sourced from the same poor power supply, the straight addition may be closer to reality.

Flow Meter Type Changes the Starting Error

A Coriolis mass flow meter normally starts with ±0.10% to ±0.20% of rate for liquids. It also measures density directly, which removes one compensation layer from the calculation. An ultrasonic flow meter may start at ±0.3% to ±0.5% depending on installation and flow profile. An oval gear flow meter for diesel can offer repeatability around ±0.05% but its uncertainty depends on viscosity, temperature, and mechanical wear.

We supplied a Coriolis meter for a chemical custody transfer system in Thailand. The line size was DN50, fluid viscosity was 120 cP, and flow rate was 2,400 kg/h. The meter uncertainty was ±0.15% of rate. The final calculation including PT100 and pressure transmitter errors reached ±0.22%.

Pressure and Temperature Compensation Errors Are Easy to Underestimate

Many liquid hydrocarbon transfers are billed at standard volume. A 4-20 mA HART pressure transmitter on a crude line may drift by 0.1 bar over six months. A Class B PT100 element has a tolerance of ±0.30 °C at 0 °C and ±0.80 °C at 100 °C. Because a 1 °C error on light crude changes volume by roughly 0.08% to 0.10%, this temperature error can dominate the budget.

Use a Class A PT100 probe and a HART pressure transmitter with a valid calibration certificate. The small extra cost reduces the total statistical error faster than buying a more accurate flow meter alone.

Example Budget for a Diesel Loading Skid in Vietnam

Last year a customer in Vietnam asked us to review a diesel custody transfer skid. The line was DN80, flow range 8,000 to 40,000 kg/h, pressure 6 bar, temperature 30 °C to 40 °C. The installed turbine meter had a base accuracy of ±0.3%. The pressure transmitter added ±0.08%. The PT100 added ±0.12 °C, about ±0.08% volume

Common Mistakes on Site

One mistake is using a laboratory accuracy statement without installation effects. Another is forgetting zero verification. A Coriolis meter with a zero shift of 2 kg/h on a DN15 line can be huge in percentage terms. For small line sizes, zero stability becomes more important than the nominal accuracy.

We have seen this on customer sites many times. A seawater desalination plant in Oman had a µS/cm conductivity sensor wired incorrectly, and the flow computer accepted the signal without alarm. The billing error was found three months later. The flow meter was fine. The supporting sensor was the problem.

Which Meters We Recommend for Custody Transfer

For liquid hydrocarbons, a Coriolis mass flow meter is the default choice when the line size is DN15 to DN200 and the fluid is clean. It removes density compensation issues and works across a wide viscosity range. For larger lines or process water with suspended solids, an ultrasonic flow meter may fit better. For conductive water and wastewater billing, an electromagnetic flow meter gives stable accuracy but needs a full pipe and proper grounding.

In ATEX Zone 1 locations, specify a Coriolis meter with Ex d or Ex ia approval and 4-20 mA HART outputs. We supply meters with calibration certificates that cover 5 to 10 points across your flow range.

FAQ on Flow Meter Uncertainty Calculations

What is a normal combined uncertainty target for custody transfer?

Most liquid hydrocarbon contracts aim for ±0.25% to ±0.5% of reading at standard conditions. Gas custody transfer is looser, often ±1.0% to ±1.5%, depending on pressure and flow profile.

How do I calculate combined uncertainty from multiple devices?

Use root sum square if the error sources are independent. Square each uncertainty, add them, then take the square root. This is the standard method in API MPMS and ISO uncertainty guides.

Which flow meter is best for diesel custody transfer?

A Coriolis mass flow meter is usually best for diesel because it measures mass and density directly. For small diesel lines where budget is tight, our oval gear flow meter for diesel can also work if viscosity and maintenance are controlled.

Does temperature compensation matter for liquid hydrocarbons?

Yes. Even small temperature errors shift the standard volume calculation. For light crude and diesel, a 1 °C error changes volume by about 0.08% to 0.10%.

Can Silver Instruments provide traceable calibration for export projects?

Yes. We ship with calibration certificates for each meter. Tell us the fluid, flow range, pipe size (DN), operating pressure (bar), temperature (°C), and whether the site requires ATEX Zone 1 approval. Send these details to Silver Automation Instruments.
